ANEST IWATA Japan scroll vacuum pump ANEST IWATA - 3176, Shinyoshida-cho, Kohoku-ku, Yokohama, 223-8501, Japan
products:
scroll-type vacuum pumps
ISP Series: 100 - 500 l/mn down to a vacuum of 1 Pa
DVSL: 500 l/mn down to a vacuum of 10 Pa
VTC high vacuum pumping systems: down (10)-6 Pa
company profile:
Anest Iwata was the first in the world to develop the air-cooled oil-free scroll-type vacuum pumps.

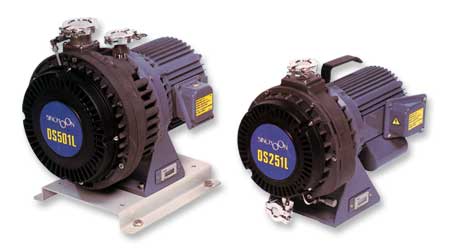

Mitsubishi China scroll vacuum pump Mitsubishi Heavy Industries Ltd. - Hiroshima Machinery Works, 4-6-22, Kanon-shin-machi, Nishi-ku, Hiroshima, 733-8553, Japan
products:
Scroll vacuum-pump DS series:
DS-251L, Design pumping speed: 250 L/min (50Hz), 300 L/min (60Hz)
DS-501L, Design pumping speed: 500 L/min (50Hz), 600 L/min (60Hz)
By adoption of a special chip seal, the Mitsubishi dry scroll pump has realized the scroll vacuum pump of complete dry inter-blade seal structure. Moreover, as a result of adopting a double-scroll blade, the pressure differential of the both sides of a rotor blade is eliminated, and the structure mechanically stabilized is realized. DS series is the pump that realized simultaneously high reliability, outstanding maintainability and small size, lightweight, and low noise.


Qianjiang Group China spiral slice vacuum pumps China Qianjiang Group - Rm.6003,Wushan Famous Building, No.9 Yanan Rd., Hangzhou 310002, Province Zhejiang, China
Jiang Dafang, Director Imp.& Exp.Dept.,
products:
Z-series single and two stage oil-circulation spiral slice vacuum pumps are basic equipment to vacuate air-tighted vessel. They are applicable to refrigerating service (for F12, F22, R134a refrigerant), printing machinery, medical machinery, vacuum packaging, gas analysis, thermoplastic molding and other industries. They can also serve as primary pump for various fine vacuum equipment.
Two stage oil-circulation spiral slice vacuum pump is to vacuate on the basis of single stage pump and it can realize most vacuum.
